| FortiGate 60F/FortiWifi 60F |
FortiGate 61F/FortiWifi 61F |
|

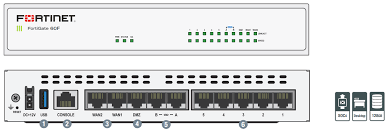

Hardware Specifications
|
| GE RJ45 WAN / DMZ Ports |
2/1 |
| GE RJ45 Internal Ports |
7 |
| GE RJ45 FortiLink Ports |
2 |
| GE RJ45 PoE/+ Ports |
- |
| Wireless Interface |
802.11 a/b/g/n/ac-W2 only FortiWifi Model |
| USB Ports |
1 |
| Console (RJ45) |
1 |
| Internal Storage |
– |
1 x 128 GB SSD |
| System Performance — Enterprise Traffic Mix |
| IPS Throughput |
1.4 Gbps |
| NGFW Throughput |
1 Gbps |
| Threat Protection Throughput |
700 Mbps |
| System Performance |
| Firewall Throughput (1518 / 512 / 64 byte UDP packets) |
10/10/6 Gbps |
| Firewall Latency (64 byte UDP packets) |
4 μs |
| Firewall Throughput (Packets Per Second) |
9 Mpps |
| Concurrent Sessions (TCP) |
700,000 |
| New Sessions/Second (TCP) |
35,000 |
| Firewall Policies |
5,000 |
| IPsec VPN Throughput (512 byte packets) |
6.5 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels |
200 |
| Client-to-Gateway IPsec VPN Tunnels |
500 |
| SSL-VPN Throughput |
900 Mbps |
| Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) |
200 |
| SSL Inspection Throughput |
750 Mbps |
| SSL Inspection CPS (IPS, avg. HTTPS) |
400 |
| SSL Inspection Concurrent Session (IPS, avg. HTTPS) |
55,000 |
| Application Control Throughput |
1.8 Gbps |
| CAPWAP Throughput (HTTP 64K) |
15 Gbps |
| NGFW Throughput |
250 Mbps |
| Threat Protection Throughput |
180 Mbps |
| CAPWAP Throughput |
1.5 Gbps |
| Virtual Domains (Default / Maximum) |
10 / 10 |
| Maximum Number of FortiSwitches Supported |
16 |
| Maximum Number of FortiAPs (Total / Tunnel Mode) |
30 / 10 |
| Maximum Number of FortiTokens |
500 |
| Maximum Number of Registered FortiClients |
200 |
| High Availability Configurations |
Active / Active, Active / Passive, Clustering |
| Dimensions |
| Height x Width x Length (inches) |
1.5 x 8.5 x 6.3 |
| Height x Width x Length (mm) |
38 x 216 x 160 |
| Weight |
1.9 lbs (0.9 kg) |
| Form Factor |
Desktop |
| Operating Environment and Certifications |
| Power Required |
100–240V AC, 50–60 Hz
(External DC Power Adapter, 12 VDC) |
| Maximum Current |
115V AC / 0.2A, 230V AC / 0.1A |
| Power Consumption (Average / Maximum) |
17.0 W / 18.5 W |
17.2 W / 18.7 W |
| Heat Dissipation |
63.1 BTU/hr |
63.8 BTU/hr |
| Operating Temperature |
32–104°F (0–40°C) |
| Storage Temperature |
-31–158°F (-35–70°C) |
| Humidity |
10–90% non-condensing |
| Noise Level |
Fanless 0 dBA |
| Operating Altitude |
Up to 7,400 ft (2,250 m) |
| Compliance |
FCC Part 15 Class B, C-Tick, VCCI, CE, UL/cUL, CB |
| Certifications |
ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN |
