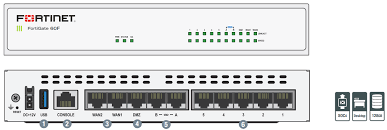

| Hardware Specifications |
| GE RJ45 WAN / DMZ Ports |
2 / 1 |
| GE RJ45 Internal Ports |
5 |
| GE RJ45 FortiLink Ports (Default) |
2 |
| Wireless Interface |
– |
| USB Ports |
1 |
| Console (RJ45) |
1 |
| Internal Storage |
– |
| System Performance — Enterprise Traffic Mix |
| IPS Throughput 2 |
1.4 Gbps |
| NGFW Throughput 2, 4 |
1 Gbps |
| Threat Protection Throughput 2, 5 |
700 Mbps |
| System Performance |
| Firewall Throughput (1518 / 512 / 64 byte UDP packets) |
10/10/6 Gbps |
| Firewall Latency (64 byte UDP packets) |
3.3 μs |
| Firewall Throughput (Packets Per Second) |
9 Mpps |
| Concurrent Sessions (TCP) |
700,000 |
| New Sessions/Second (TCP) |
35,000 |
| Firewall Policies |
5,000 |
| IPsec VPN Throughput (512 byte) 1 |
6.5 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels |
200 |
| Client-to-Gateway IPsec VPN Tunnels |
500 |
| SSL-VPN Throughput |
900 Mbps |
| Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) |
200 |
| SSL Inspection Throughput (IPS, avg. HTTPS) 3 |
630 Mbps |
| SSL Inspection CPS (IPS, avg. HTTPS) 3 |
400 |
| SSL Inspection Concurrent Session (IPS, avg. HTTPS) 3 |
55,000 |
| Application Control Throughput (HTTP 64K) 2 |
1.8 Gbps |
| CAPWAP Throughput (HTTP 64K) |
8 Gbps |
| Virtual Domains (Default / Maximum) |
10 / 10 |
| Maximum Number of FortiSwitches Supported |
16 |
| Maximum Number of FortiAPs (Total / Tunnel Mode) |
64 / 32 |
| Maximum Number of FortiTokens |
500 |
| High Availability Configurations |
Active / Active, Active / Passive, Clustering |
| Dimensions |
| Height x Width x Length (inches) |
1.5 x 8.5 x 6.3 |
| Height x Width x Length (mm) |
38.5 x 216 x 160 mm |
| Weight |
2.23 lbs (1.01 kg) |
| Form Factor |
Desktop |
